Overview

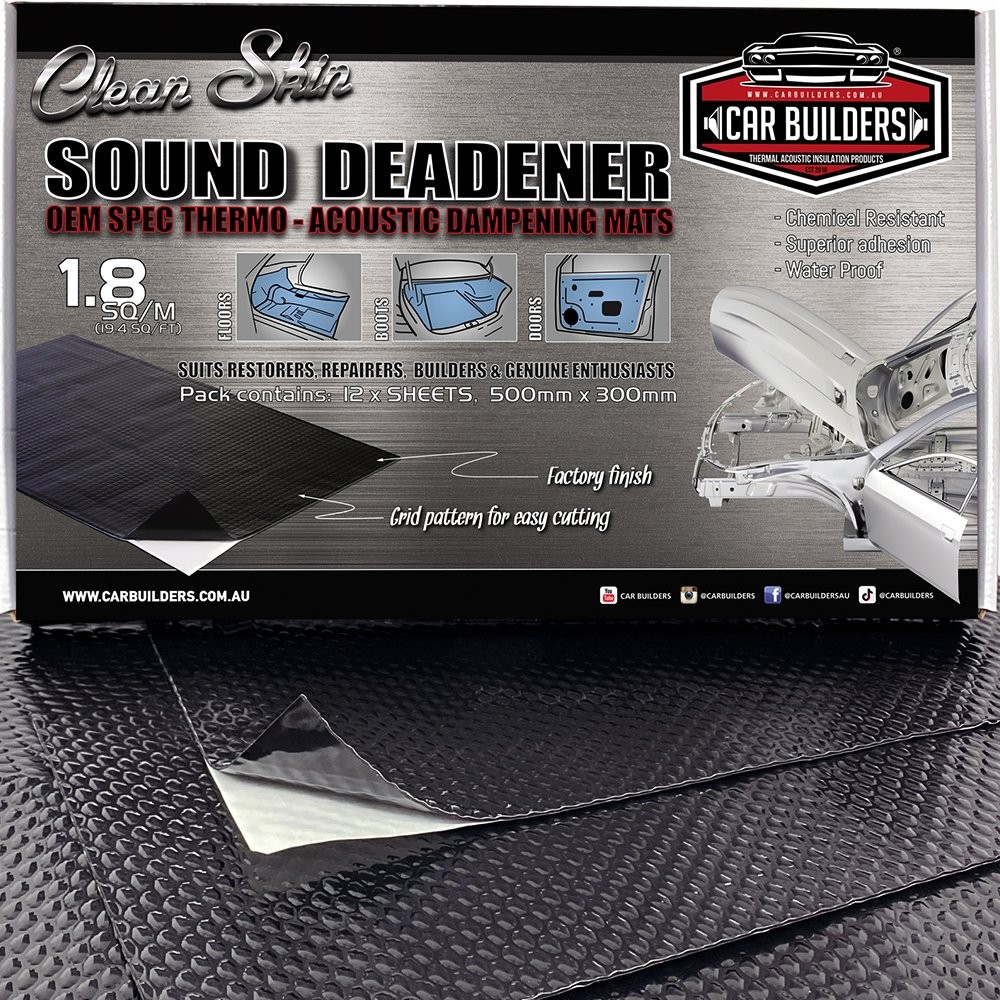

Car Builders Stage 1 Sound Deadener is a vibration (sound) dampening mat. It consists of a butyl rubber noise absorption layer combined with an aluminium top layer.
Each box has 12 sheets, each sheet is 300x500mm and 2mm-2.2mm thick.
Car Builders butyl based Sound Deadener does not require heating, does not smell and will not go brittle over time, which are all qualities of old style tar or bitumen sound deadening materials.
Car Builders Sound Deadener has pressure sensitive butyl rubber, which is inherently sticky eliminating the risk of an adhesive layer failing.
Features/Advantages
- Easy installation - just peel off the release liner and roll it on
- 100% waterproof - does not rot or deteriorate
- Cuts with scissors or a knife
- Reduces heat transfer
- Conforms and fuses easily to all types of sheet metal
- No odour
Applications

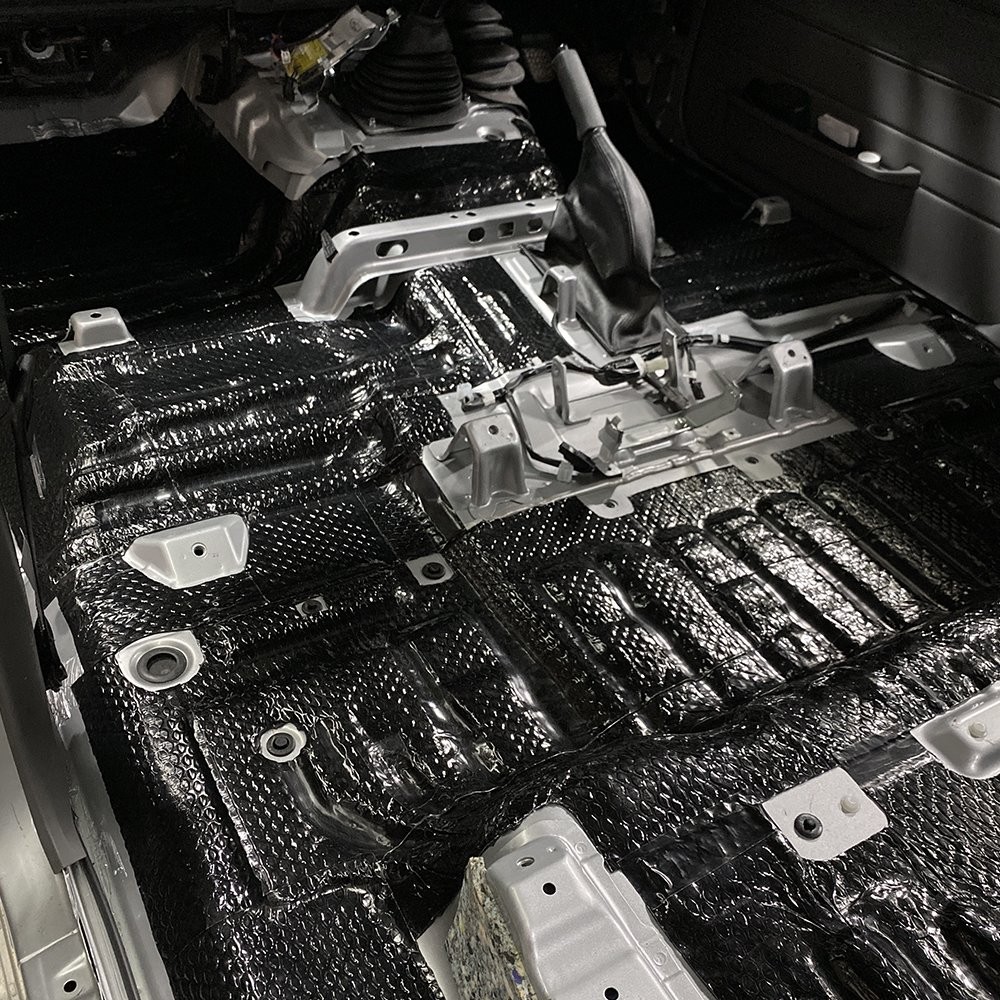

- Under carpets
- Roof skins
- Inside cavities
- 1/4 panels
- Doors
- Boots/trunks
- Firewalls
Separate listings available for
,
,
, and
.
All products are exactly the same - only the print on the aluminium changes.
| Manufacturer Specifications | |
|---|---|
| Appearance: | Black Butyl based core with silvery aluminium reinforced layer backed with white wax paper release liner. |
| Thickness: | 2.0 - 2.2mm |
| Weight: | 3.2kg/p sm |
| Acoustic Loss Factor: | 0.08 to 0.41 (ASTM method E756 @ 200Hz, Temperature range -10°C to +60°C) |
| Recommended Install Temperature: | -10°C to +60°C |
| Resistance Temperature Range: | -40°C to +149°C |
| Chemical Resistance: | Resistant to water and mineral oils |
| Adhesive Peel Strength: | 65N/cm on cold steel |
| Storage: | Product should be stored at room temperature for best application and should be stored horizontally in its package. |
