Overview
Suitable for use on all Slant 6 engines running factory exhaust manifold or Pacemaker extractors.

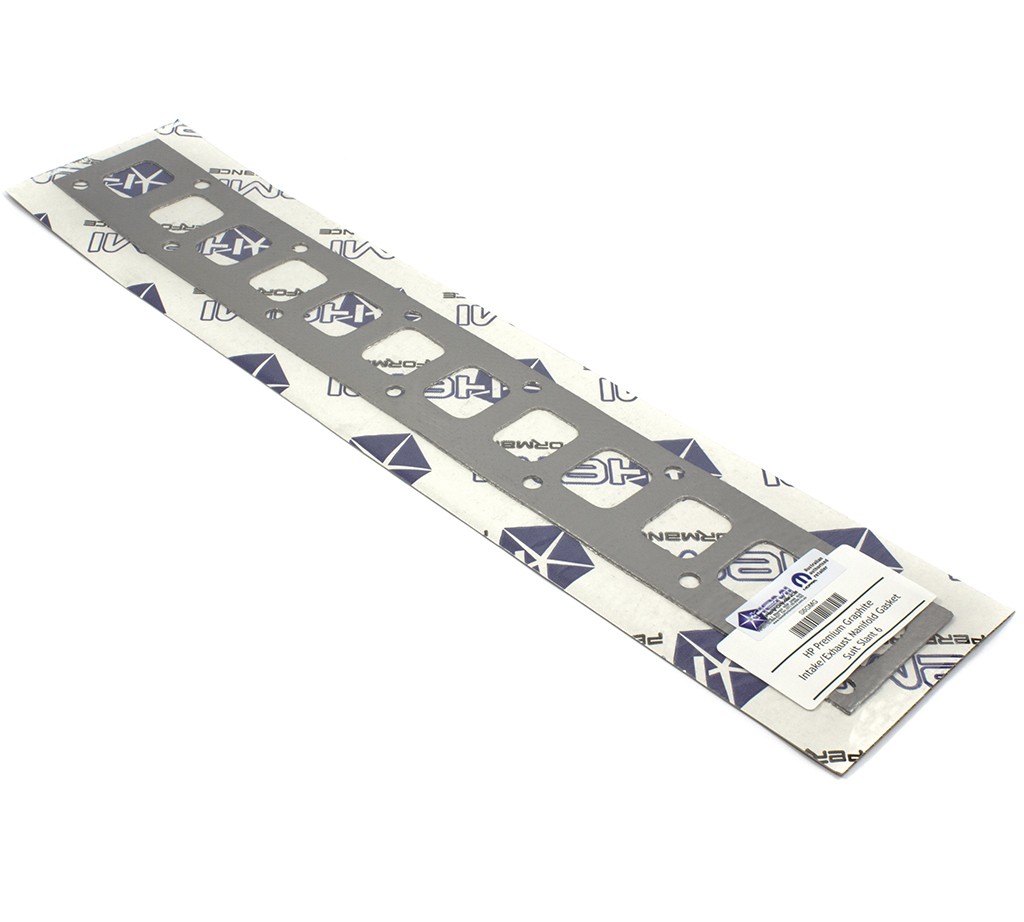

HP Premium Graphite Manifold Gaskets
These gaskets offer a superior seal when compared to traditional composite type. They have an optimum 'crush' value ensuring a tight seal; this is especially good for extractors, but still able to be used on standard factory manifolds with great results!
Made from a perforated stainless steel insert sandwiched between two layers of flexible graphite to ensure that they have a super high heat tolerance like no other aftermarket gasket.
These gaskets can be opened up with a die grinder for ported heads and still maintain enough material to seal properly. This makes them ideal for turbo & supercharged applications.
| Technical Specification (value relate to 1.5mm thickness) | ||||
| Non-asbestos laminated jointing roll, composed of beater addition paper inserted with perforated 0.20 - 0.22 mm thick carbon steel sheet. The beater add layers are composed of mineral fibres and fillers, bonded with elastomer. | ||||
| Max operating temperature 450°C | Compressibility: 17.8% | Recovery: min 59.6%. | ||
| Immersion Tests | ||||
| Type | Compressibility | Recovery | Weight increment | Thickness Increment |
| in VS 30 | 17.9% | min 48.1% | max 17.8% | max 6.1% |
| in ASTM 3 OIL | 19.1% | min 48.3% | max 19.5% | max 5.2% |
| in M 15 | 20.7% | min 36.5% | max 21.6% | max 11.9% |
| in FUEL | 17.1% | min 46.0% | max 15.9% | max 3.6% |
| in COOLANT | 22.9% | min 44.9% | max 24.9% | max 8.5% |
Customer Reviews
- A top product again thanks By steve (posted on 28/09/2024)
- good quality
- Ease to install had no trouble fitting the seal By Mervyn (posted on 5/09/2024)
- worked well on my slant
- great product By Mervyn (posted on 2/08/2024)
- does the job for am happy with quite happy to recommend it
- As advertised By Richard (posted on 9/03/2024)
- Good fit on the head good thickness gasket
- F By PETER (posted on 9/02/2024)
- F
- Nice product By Matthew (posted on 26/05/2023)
- I Would buy again
- Very Happy By David (posted on 6/12/2022)
- Good high quality gasket
- After searching without luck for the pink extractor gasket, I went to the Valiant Facebook sites.. Everyone said get the Hemiperformance one. By Rob (posted on 7/10/2022)
- Yeah
- Awesome By Josef (posted on 30/06/2020)
- Works a treat
- The item was well packaged , undamaged and delivered on time. By Len (posted on 18/02/2020)
- great product, I have used these gaskets before and would not hesitate to use again. great fit sealed well to the head and manifold. no leakages at all.
- great product By Len (posted on 28/12/2019)
- fitted strait up to the head . when the motor was started there where no leaks at all. a very good product
- Very thin for an advertised extractor manifold gasket compared to other brands By Danny (posted on 24/11/2019)
- Will seek brand name next time
- Very good By Sean (posted on 15/11/2019)
- Arrived quickly and easy to install
- all good By Derek (posted on 4/10/2019)
- all good , with fast shipment
- Very good By Sean (posted on 21/09/2019)
- Good quality gasket - easy to fit %u270C%uD83C%uDFFE
- Graphite gasket By Gary (posted on 4/08/2019)
- Superior quality gasket the only one to use for extractors
- Graphite gasket By Gary (posted on 4/08/2019)
- Superior quality gasket the only one to use for extractors
- Good By Grant (posted on 14/06/2019)
- Good
- Good fit By Darren (posted on 6/02/2019)
- Good fit compessed up well
- All good By Derek (posted on 31/08/2018)
- All good
- All; good By Derek (posted on 24/08/2018)
- All good
Additional Information
| SKU | 107.32148 |
|---|---|
| Factory Comparison | Direct Replacement |
| Sale Unit | Each |
| Legacy Part Number | S6GMG |
