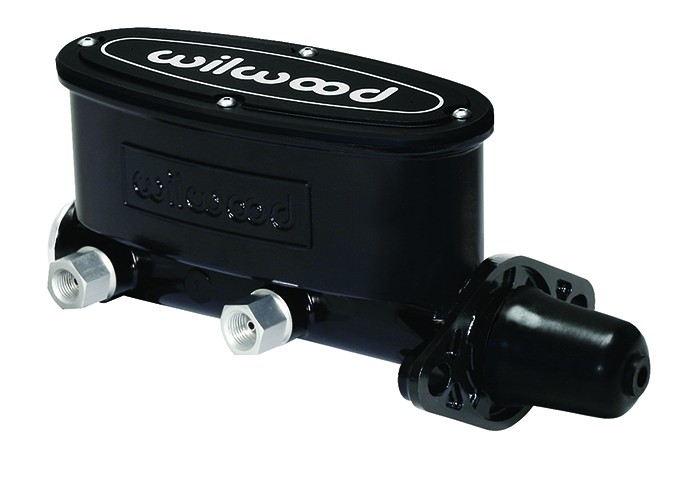

Wilwood’s Tandem Aluminum Master Cylinder in black e-coat. The 1” bore can be used in manual and power assisted applications and does not come with a pushrod. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders.
| Manufacturer Specifications |
|---|
| Master Cylinder Dimensions |
|---|
| Bore Size: | 1.00" |
|---|
| Area (in²): | 0.780 |
|---|
| Stroke: | 1.10 |
|---|
| Volume (cu in): | |
|---|
| Master Cylinder Description |
|---|
| Type: | Tandem Outlet |
|---|
| Outlets: | 2 |
|---|
| Material: | Aluminum |
|---|
| Finish: | Black E-coat |
|---|
| Reservoir |
|---|
| Res Type: | Integral |
|---|
| Res Size (oz): | 8.0 / 4.8 |
|---|
| Res Size(cu in): | 14.4 / 8.7 |
|---|
| Rate: | |
|---|

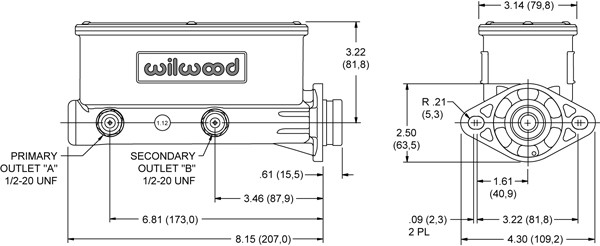

| Additional Dimensions |
|---|
| Overall Length(in): | 8.76" |
|---|
| Flange to End Length (in): | 8.15" |
|---|
| Inlet Size (in): | |
|---|
| Inlet Fit (in): | |
|---|
| Outlet Size 1 (in): | 1/2-20 |
|---|
| Outlet Fit 1 (in): | 3/8-24 IF or 1/2-20 IF |
|---|
| Outlet Size 2 (in): | 1/2-20 |
|---|
| Outlet Fit 2 (in): | 3/8-24 IF or 9/16-18 IF |
|---|
| UPC Number |
|---|
| UPC: | 889545067965 |
|---|
